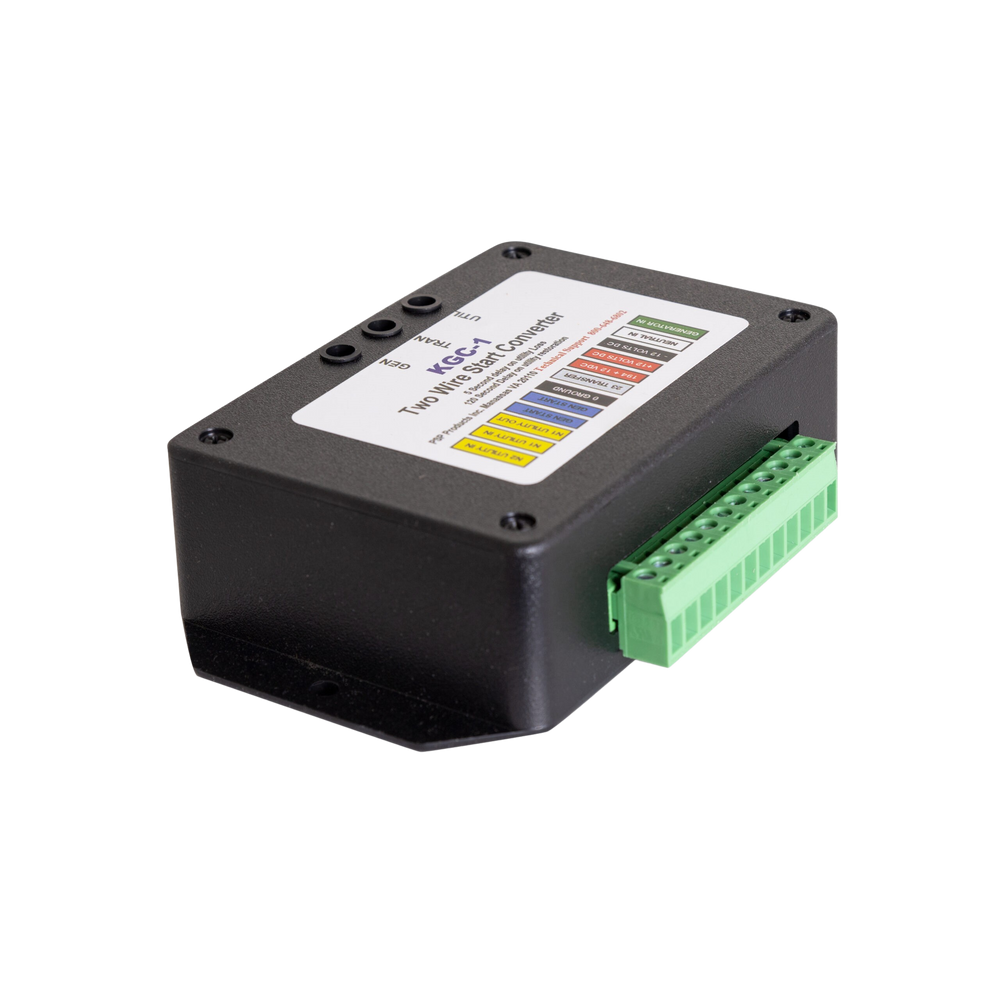

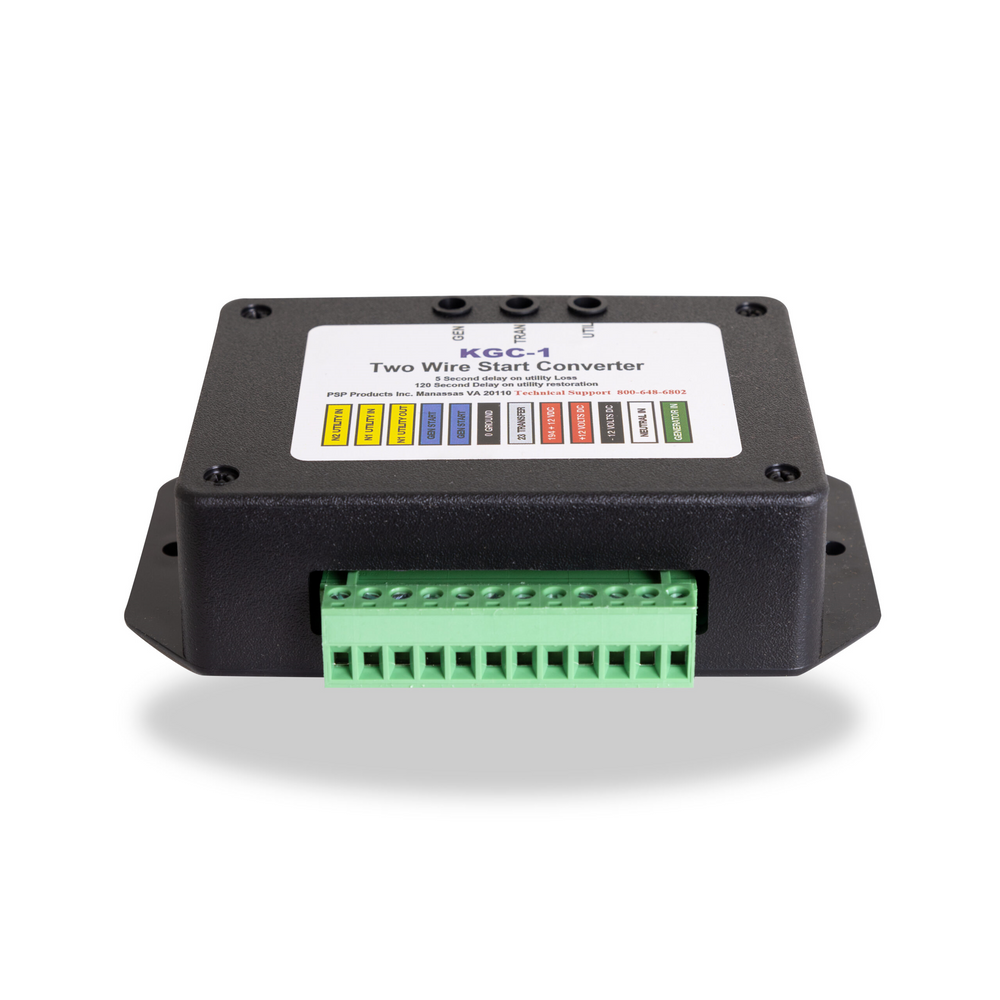

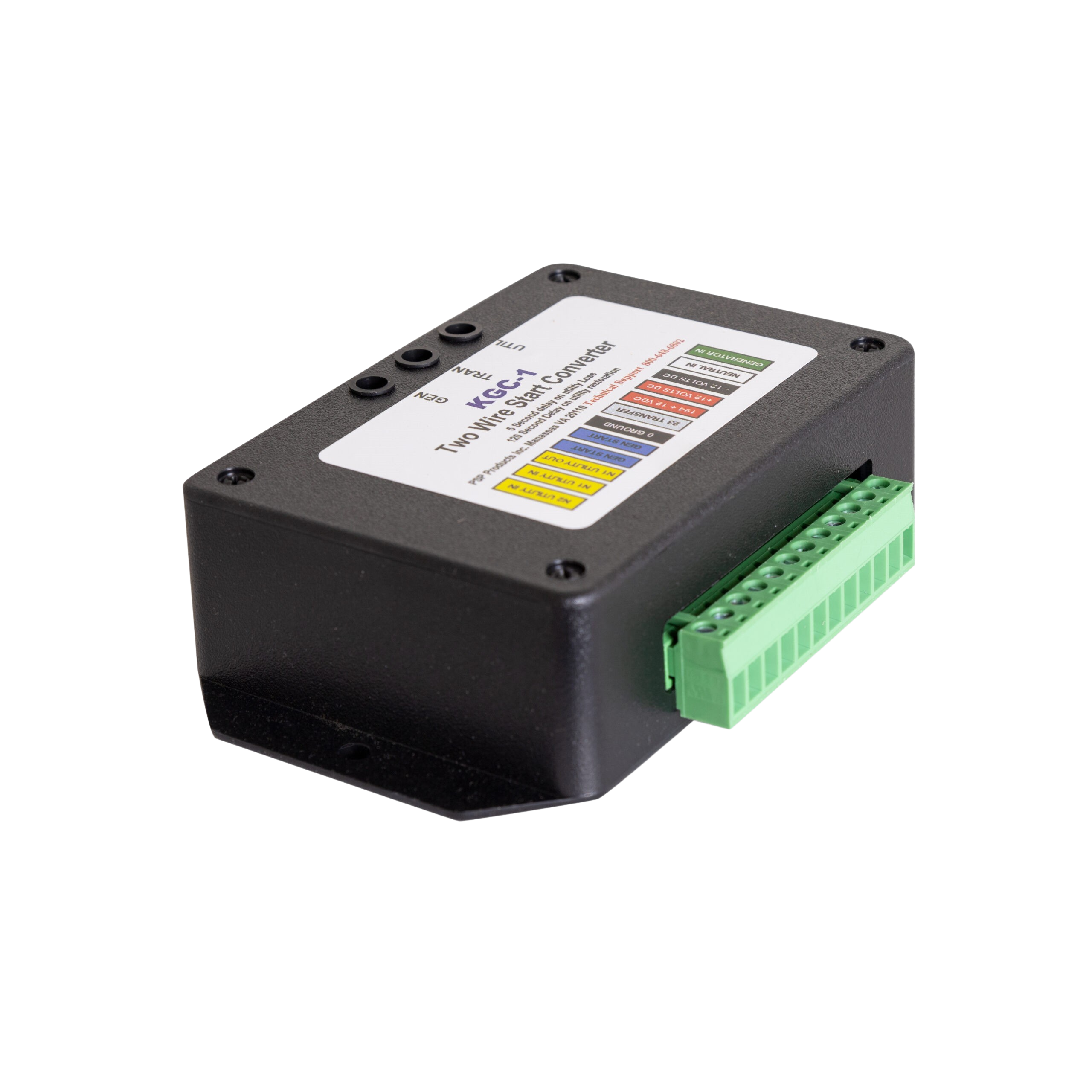

PSP KGC-1 240 VAC Sensing ATS to 2-Wire Start Converter New
Manufacturer: PSP
SKU: KGC-1
QTY
(888) 999-1522
$ 578.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-

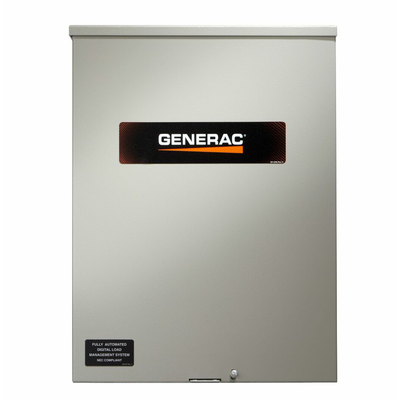

Generac RXSW200A3 200 Amp Service Entrance Rated Automatic Transfer Switch New
-
Generac RXSW100A3 100 Amp Service Entrance Rated Automatic Transfer Switch New
-
Generac RXSW150A3 150 Amp Service Entrance Rated Automatic Transfer Switch New
-

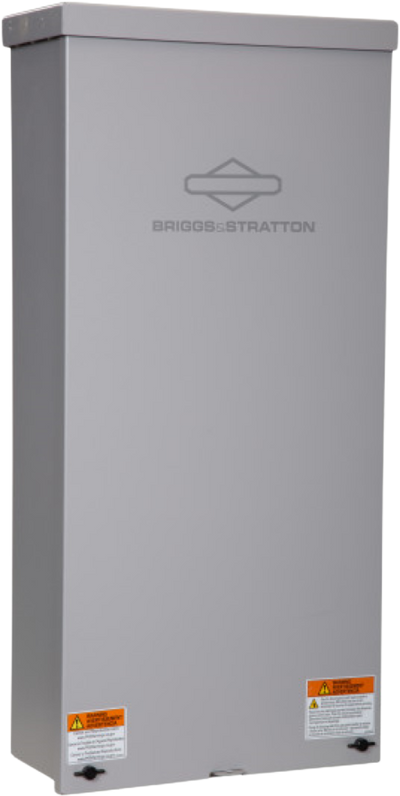

Briggs and Stratton 071270 200-Amp Service Disconnect Outdoor Automatic Transfer Switch New
PSP KGC-1 240 VAC Sensing ATS to 2-Wire Start Converter New
Product Overview
The KGC-1 converts a 240V sensing transfer switch to a 2 wire start transfer switch. The interface provides the necessary voltage sensing, timing functions and switching circuits required for automatic operation. This allows a 2 wire start generator to be installed without having to change the transfer switch or wiring between the transfer switch and generator.
Brand new
2 year warranty
Authorized PSP dealer
Features
- Allows any 2-wire start generator to be installed without having to change the transfer switch or wiring between the transfer switch and generator.
- Provides the necessary voltage sensing, timing functions and switching circuits required for automatic operation
- Works with Generac® and Briggs & Stratton® transfer switches
- Utility loss timer selectable 5 seconds or 30 seconds
- Generator cool-down: 10 seconds, 300 seconds, or 600 seconds
- Utility return transfer timer selectable between 30 seconds, 129 seconds, or 600 seconds
- LED lights to indicate utility mode, generator mode, and transfer
Specifications
| Compatible Transfer Switches | Generac and Briggs & Stratton |
| Utility Loss Timer | Selectable 5 seconds or 30 seconds |
| Generator Cool-Down | 10 seconds, 300 seconds, or 600 seconds |
| Return Transfer Timer | Between 30 seconds, 129 seconds, or 600 seconds |
| LED Light | Yes |
| Dimensions | 5.25" x 3.125" |
| Warranty | 2 year warranty |
Package Contents
PSP KGC-1 240 VAC Sensing ATS to 2-Wire Start Converter
Warranty
This item comes with a 2 year warranty.
